Guindastes LTM LIEBHERR
    LTF 1045-4.1
    max. lifting capacity 50 t
    At radius 35 m
    max. lifting height 44 m
    max. radius 40 m
    Number of axes 4

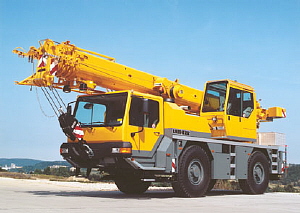

    LTM 1030/2
    max. lifting capacity 35 t
    At radius 3 m
    max. lifting height 45 m
    max. radius 40 m
    Number of axes 2

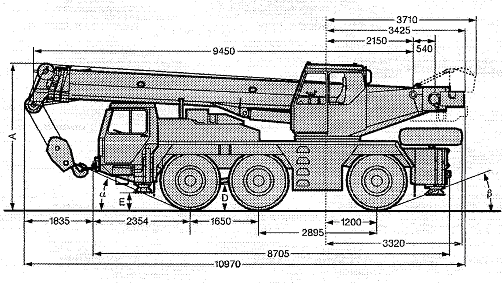

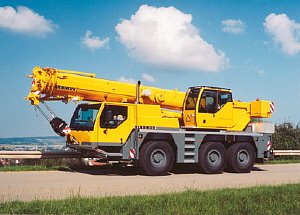

    LTM 1045/1
    max. lifting capacity 45 t
    At radius 3 m
    max. lifting height 50 m
    max. radius 40 m
    Number of axes 3

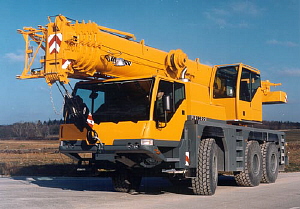

    LTM 1055/1
    max. lifting capacity 55 t
    At radius 2,5 m
    max. lifting height 56 m
    max. radius 48 m
    Number of axes 3

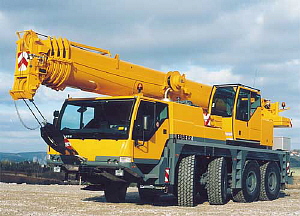

    LTM 1060/2
    max. lifting capacity 60 t
    At radius 2.5 m
    max. lifting height 60 m
    max. radius 48 m
    Number of axes 4
    LTM 1080/1
    max. lifting capacity 80 t
    At radius 2.5 m
    max. lifting height 66 m
    max. radius 56 m
    Number of axes 4

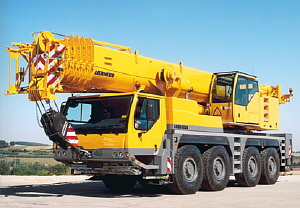

    LTM 1090/3
    max. lifting capacity 90 t
    At radius 3 m
    max. lifting height 84 m
    max. radius 58 m
    Number of axes 4

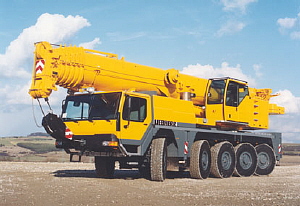

    LTM 1100/2
    max. lifting capacity 100 t
    At radius 2,7 m
    max. lifting height 84 m
    max. radius 66 m
    Number of axes 5

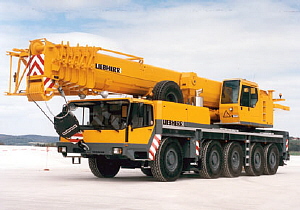

    LTM 1150/1
    max. lifting capacity 150 t
    At radius 3 m
    max. lifting height 92 m
    max. radius 74 m
    Number of axes 5

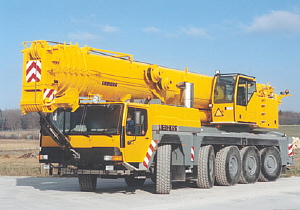

    LTM 1200/1
    max. lifting capacity 200 t
    At radius 3 m
    max. lifting height 103 m
    max. radius 86 m
    Number of axes 5

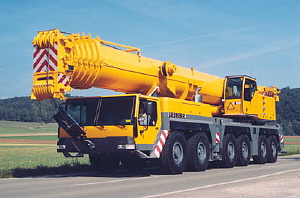

    LTM 1250/1
    max. lifting capacity 250 t
    At radius 3 m
    max. lifting height 108 m
    max. radius 92 m
    Number of axes 6
    LTM 1300/1
    max. lifting capacity 300 t
    At radius 3 m
    max. lifting height 116 m
    max. radius 92 m
    Number of axes 6

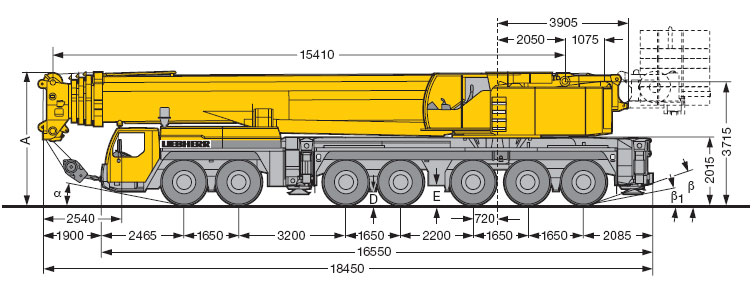

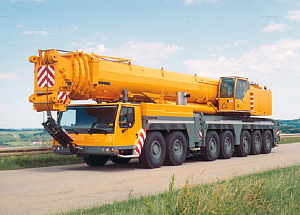

    LTM 1400/1
    max. lifting capacity 400 t
    At radius 3 m
    max. lifting height 118 m
    max. radius 92 m
    Number of axes 7

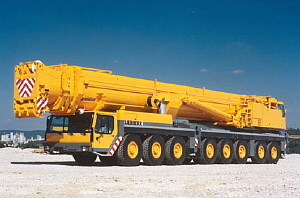

    LTM 1500
    max. lifting capacity 500 t
    At radius 3 m
    max. lifting height 145 m
    max. radius 108 m
    Number of axes 8

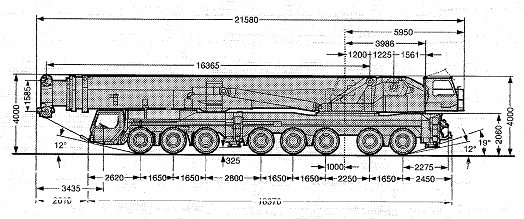

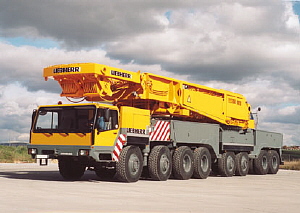

    LTM 1800
    max. lifting capacity 800 t
    At radius 3 m
    max. lifting height 146 m
    max. radius 126 m
    Number of axes 8

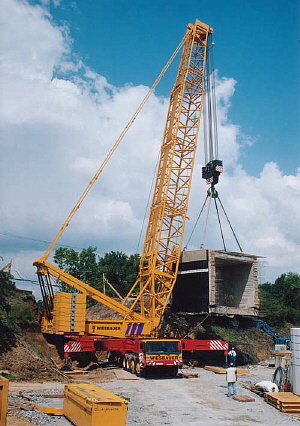

    The LG 1550
    max. lifting capacity 550 t
    At radius 4,5 m
    max. lifting height 180 m
    max. radius 124 m
    Number of axes 8

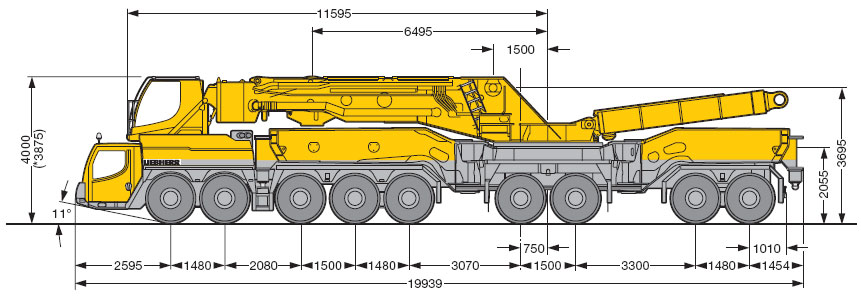

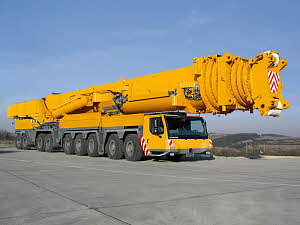

    The LTM 11.200
    max. lifting capacity 1200 t
    At radius 2,5 m
    max. lifting height 180 m
    max. radius 126 m
    Velocidade 75km/h
    Peso operacional 96t
    Number of axes 9
